FEATURES :

• Maximum output of Manual Feeding 600 ampoules per min.
• Universal Printing Unit.
• Manual Feeding.
• Printing Registration Control(PRC)
• Separate Punching Tool & Perporation Station.
• Stainless Steel Cladding conforming to GMP Standard.

TECHNICAL DETAILS :

• Maximum Forming Area – 115mm x 200mm
• Minimum pack size – 40 x 60
• Optimum forming depth – 18 mm
• Maximum PVC Foil Width – 210 mm
• Maximum Alu Foil Width – 208 mm
• Maximum Cone Diameter –70 – 76 mm

Utilities :

• Connected Load(kw) - 8KW
• Average Power Consumption – 4KW
• Approx 3 Phase power supply – 4 wire + Protective
• (415V + 10%) – Earthing
• Cooling Water Consumption – 46 -60 Litr/hr
• Compressed Air – 8 CFM

MACHINE DIMENSION

• Machine Length - 3600 + 2%
• Machine Width - 1100 + 2%
• Machine Height - 1900 + 2%

FLOOR DIMENSION

• Machine Length - 4000 + 2%
• Machine Width - 3100 + 2%
• Machine Height - 2400 + 2%

WEIGHT (Net Weight – 1400 Kg.)

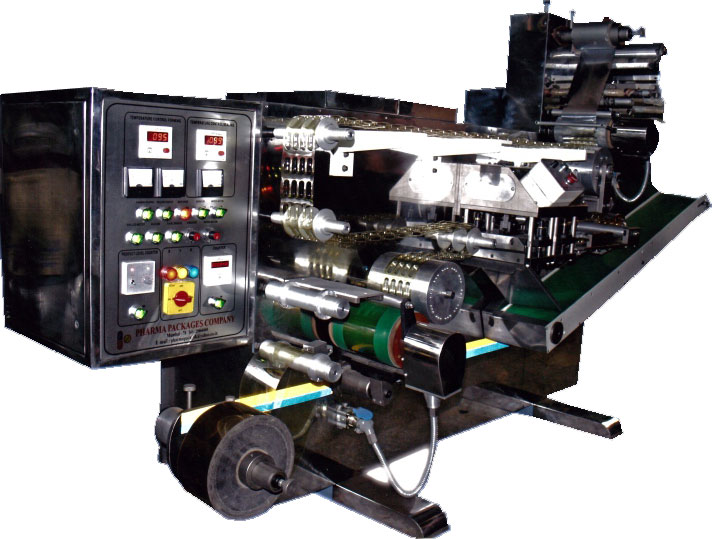

Output of Ampoules rotary machine

	5 Ampoules	1 Ampoules + 1 Syringe	8 Vails
Speed	40 Strokes	40 Strokes	40 Strokes
Packs Per Strokes	3	2	1
Ampoules Per Strokes	15	2	8
Ampoules Per Minute	600	80	320
Ampoules Per Hours	36000	4800	19200
